Drawer for my toolbox

My main woodworking toolbox has two runners inside, near the top edge, on which to slide a drawer. I put them in when I built the thing (I made them too long, or the lid props too long, or something too long, and had to chop a bit out of them so the lid would close; see at right. That’s irrelevant to the task at hand though.)

<img src="http://photos.samwilson.id.au/i/upload/2015/06/19/20150619011728-c176188d-sm.jpg" width="576" height="384" class="aligncenter" />

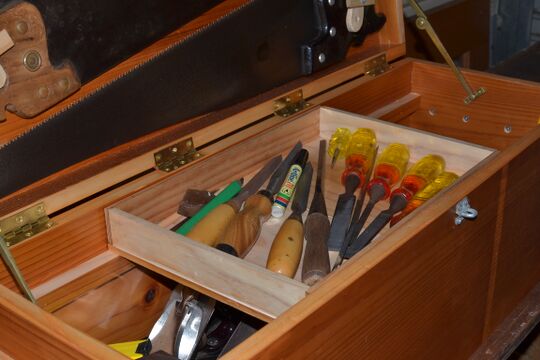

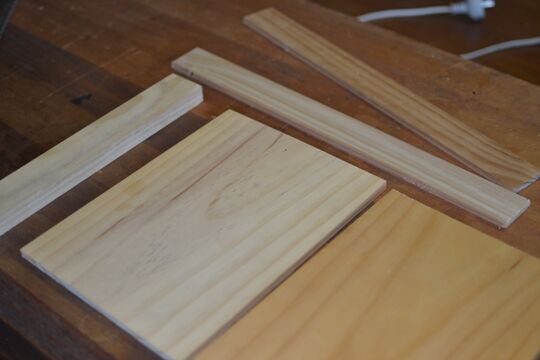

But I have no drawer — so, I’m making one. I’ve got a few odd bits of pine sitting around, mostly destined to be paint stirrers; I’ll bodge them together in a squarish shape, and my chisels and small things will have somewhere to be put.

<img src="http://photos.samwilson.id.au/_data/i/upload/2015/06/19/20150619011747-f2fd8289-sm.jpg" width="576" height="384" class="aligncenter" />

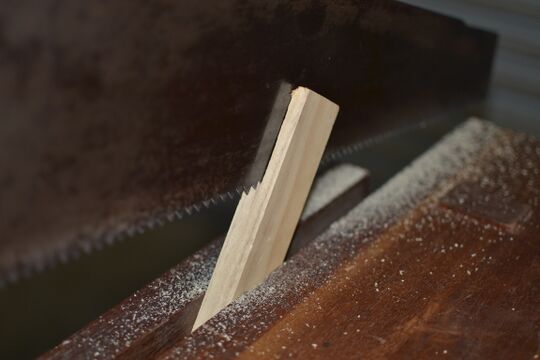

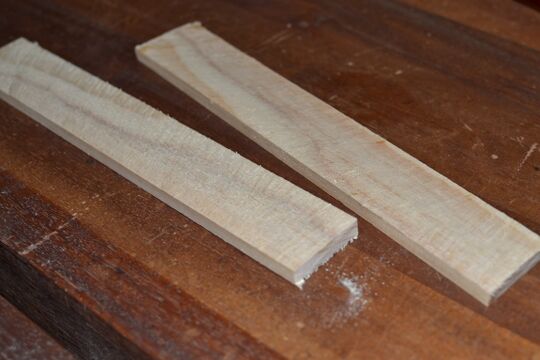

The piece of 19×42 was a bit fat, or at least I thought it might look a bit odd next to the skinny walls made from the other pieces, so I ripped it in half.

<img src="http://photos.samwilson.id.au/i/upload/2015/06/19/20150619032646-6e48c716-sm.jpg" width="576" height="384" class="aligncenter" />

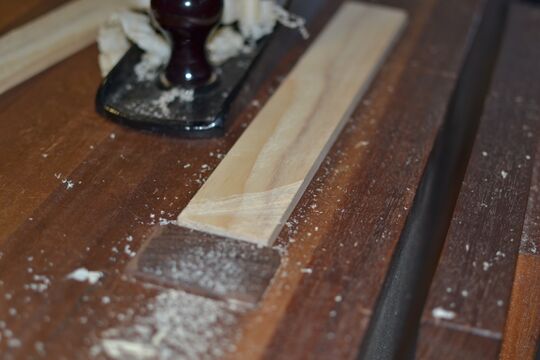

Docked to length (with a few millimeters to spare for cutting off later), I then cleaned up the sawn surfaces (a bit; I’m not fussy, and sometimes like to see some saw marks). I usually work with Tas. Oak, and am always surprised at the soft squishiness of pine, and the speed with which it can be worked (or butchered, as one might say in this case).

<img src="http://photos.samwilson.id.au/i/upload/2015/06/19/20150619032924-a43de2f8-sm.jpg" width="576" height="384" class="aligncenter" />

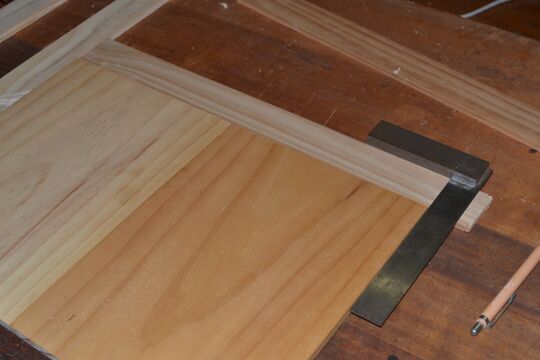

The drawer bottom pieces were actually already within a gnat’s crotchet of where they needed to be, so I just planned their ends to get them squared up and the right length. The sides I then marked to length off the bottoms, because I really don’t care how big this thing is (it just has to fit itself).

<img src="http://photos.samwilson.id.au/_data/i/upload/2015/06/19/20150619033028-380e4843-sm.jpg" width="576" height="384" class="aligncenter" />

I really should get around to making myself a bench hook or two; they’re far better than hanging things off the end of the bench. But I’m lazy; whenever I’ve got energy for woodwork, I want to get on with the thing at hand, and not get caught up in jigs and set-up and prep. A ridiculous, inaccurate attitude, I’m sure. It’s not like I get shit done anyway.

<img src="http://photos.samwilson.id.au/_data/i/upload/2015/06/19/20150619033120-b37f00fb-sm.jpg" width="576" height="384" class="aligncenter" />

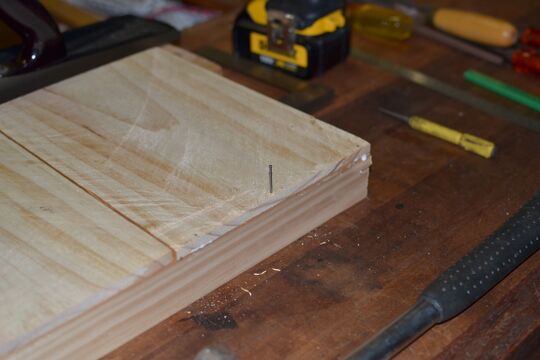

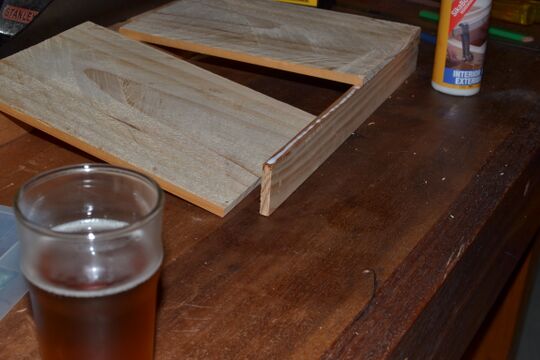

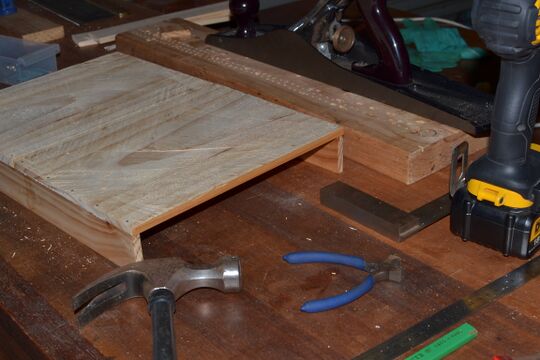

The time had come for beer, so that was procured (from a shockingly plastic homebrew bottle), and the glue-up commenced. It didn’t go right, at first, but I went and found a proper glass for it (and found my battery drill with a 1 mm bit), and after that the nails went straight and true and didn’t blow out the sides.

<img src="http://photos.samwilson.id.au/_data/i/upload/2015/06/19/20150619033331-d618654b-sm.jpg" width="576" height="384" class="aligncenter" />

Probably, one should try to avoid blogging about gluing things together while actually doing it. But then, the computer was right there in the cupboard playing odd things from Radio Paradise, so it seemed easy enough. Got a bit of glue on the camera grip though.

<img src="http://photos.samwilson.id.au/_data/i/upload/2015/06/19/20150619033543-23a62fa6-sm.jpg" width="576" height="384" class="aligncenter" />

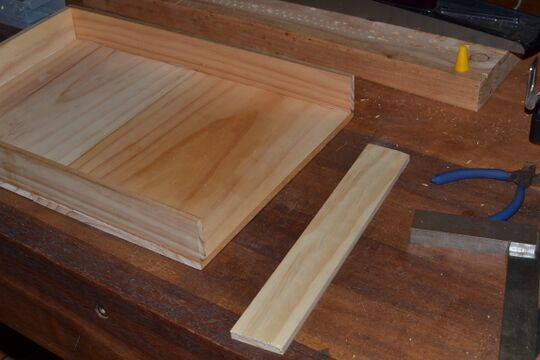

The two short sides were next, being cut to length each to their own. They fitted with no dramas. By this time it was dark, and I was wondering what it would cost to get something more than a single fluro tube lighting my shed. Or even a new extension cord so I could run the computer, amp, and a desk lamp on my bench (radio takes precedence at the moment).

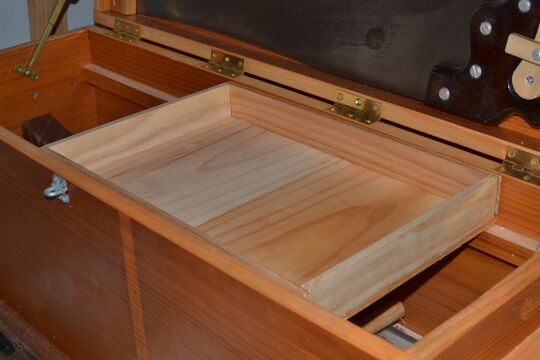

So, all done.

<img src="http://photos.samwilson.id.au/_data/i/upload/2015/06/19/20150619033641-e7ec6402-sm.jpg" width="576" height="384" class="aligncenter" />

The album for all these photos is at photos.samwilson.id.au/index/category/222.
